HPE Networking Instant Configurations

Enable the Internal Access Point Beacons

Enabling the internal BLE using HPE Networking Instant is supported in the graphical user interface.  The internal BLE must be enabled so that it can be provisioned for use with Meridian.

Enabling the Internal BLE Radio using the GUI.

*** FEATURE NOT SUPPORTED ON 8.6.0.x and 8.7.0.x ***

Enabling the Internal BLE radio using the UI is not supported in 8.6.0.x and 8.7.0.x
On these versions, use CLI to enable the Internal BLE radio.
You can use the GUI to enable Internal BLE radio on 8.8.0.x, 8.9.0.x, 8.10.0.x, 8.11.0.x

Enabling the Internal BLE Radio using CLI

Use the instructions below to enable the operation mode of the internal BLE radio using CLI.

(host) #configure terminal
We now support CLI commit model, please type "commit apply" for configuration
to take effect

Configure the Internal BLE Radio

(host) (config) #iot radio-profile ap-ble
(host) (config) (IoT Radio Profile "ap-ble" #radio-mode ble
(host) (config) (IoT Radio Profile "ap-ble" #exit
(host) (config) #iot use-radio-profile ap-ble
(host) #commit apply
commiting configuration...
configuration committed.

This is all that needs to be done to enable the internal BLE radio.  All other parameters are default values that you do not need to set.

Verify That The Internal BLE Radio Is Set Correctly

(host) [mynode] #show iot radio-profile "ap-ble"

Name                :ap-ble
Reference           :1
Instance            :internal
Mode                :ble
BLE Opmode          :scanning beaconing
BLE Console         :
BLE TxPower         :0
Zigbee Mode         :coordinator
Zigbee Channel(s)   :auto

The default BLE Op Mode is scanning beaconing so you don't have to specify the value.  You just have to create the profile and set the mode to ble.

Check the AP’s configuration to ensure that the profile is received correctly

(host) #show ap debug ble-config ap-name

-----------------------------------------------
---------- IOT Radio Profiles -----------------
-----------------------------------------------
Profile Name: ap-ble
Radio Instance: Internal
Radio Mode: BLE
BLE Mode: beaconing scanning
BLE Console : Off
BLE Tx Power (dBm): 0
-----------------------------------------------

Disregard the BLE Tx Power (dBm) value of "0".  It is not used at the moment because this version of the firmware does not support changing Tx power through the radio profile.

Enabling the Internal BLE Radio using the GUI.

You can use the GUI to enable Internal BLE radio on 8.8.0.x, 8.9.0.x, 8.10.0.x, 8.11.0.x

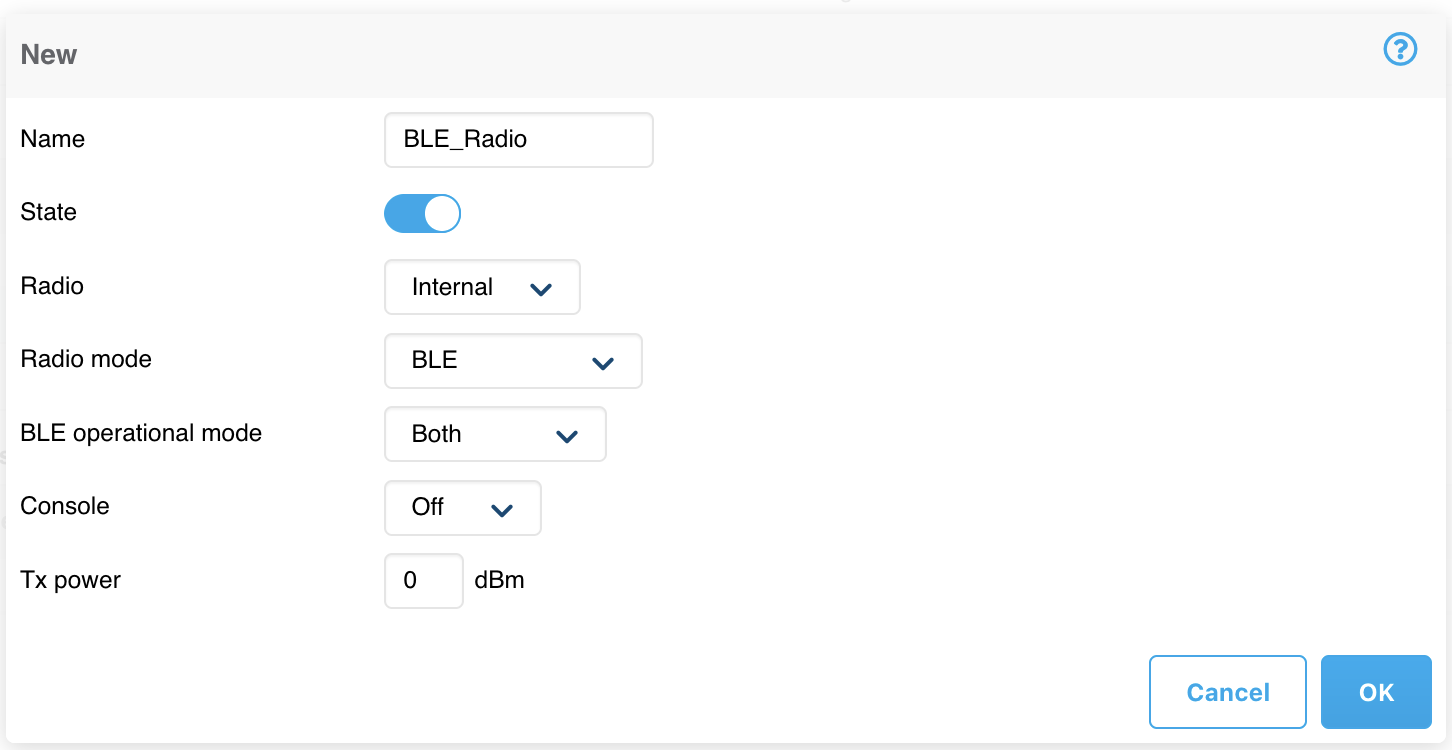

On the Virtual Controller, navigate to Configurations > Services > IoT.  In the IoT Radio profiles section, click on the +, enter the following, then click OK.

• Name:  <Beacon Managemen IoT Profile Name>
• State: Enable
• Radio: Internal
• Radio Mode: BLE
• BLE Mode:  Both
• Console: Off
• Tx Power: 0

The internal BLE should be broadcasting it's BLE MAC address at this point.  If you are near an AP, you can use the Meridian Manager app to scan and find the BLE MAC for the AP.  After you find the AP beacon, you can go ahead and configure the beacon by moving it onto the Meridian map.

Configure IoT Transport Profile for Beacons Management

After the BLE radio has been enabled on the AP, you are ready to configure the IoT profile for Beacons Management.  The Beacons Management IoT profile is required for sending data such as beacon mac address, uuid/major/minor, battery level, transmit power, hardware type, firmware, etc to the Meridian Beacon Management server.  This is also required if you plan to use Meridian Asset Tracking.

Configuring Beacons Management IoT Profile using the GUI

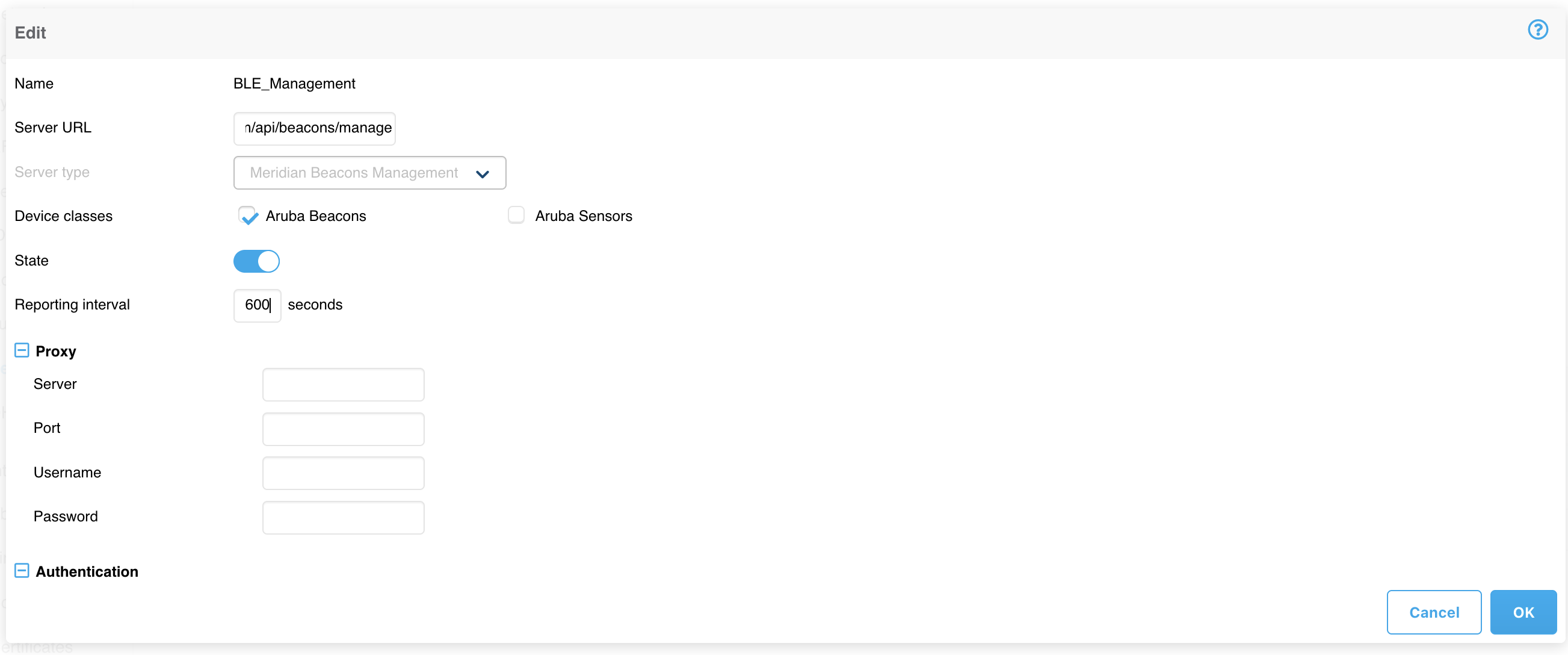

Complete the following steps to configure the beacons management IoT profile.  On the Virtual Controller, navigate to Configurations > Services > IoT.  In the IoT Transport Streams section, click on the +, enter the following, then click OK.

• Name:  <Beacon Managemen IoT Profile Name>
• Type: Meridian Beacons Management
• State: Enable
• URL: <Beacon Management Server URL>
• Transport Interval: 600

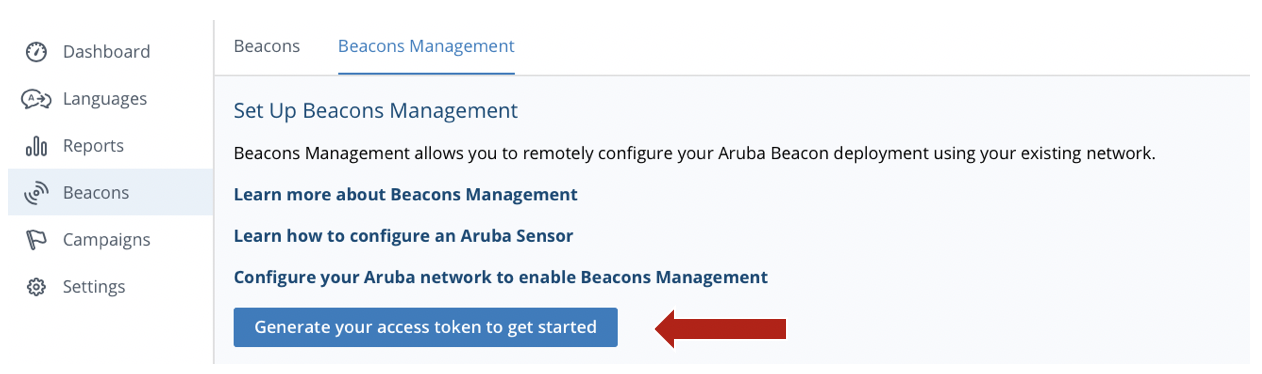

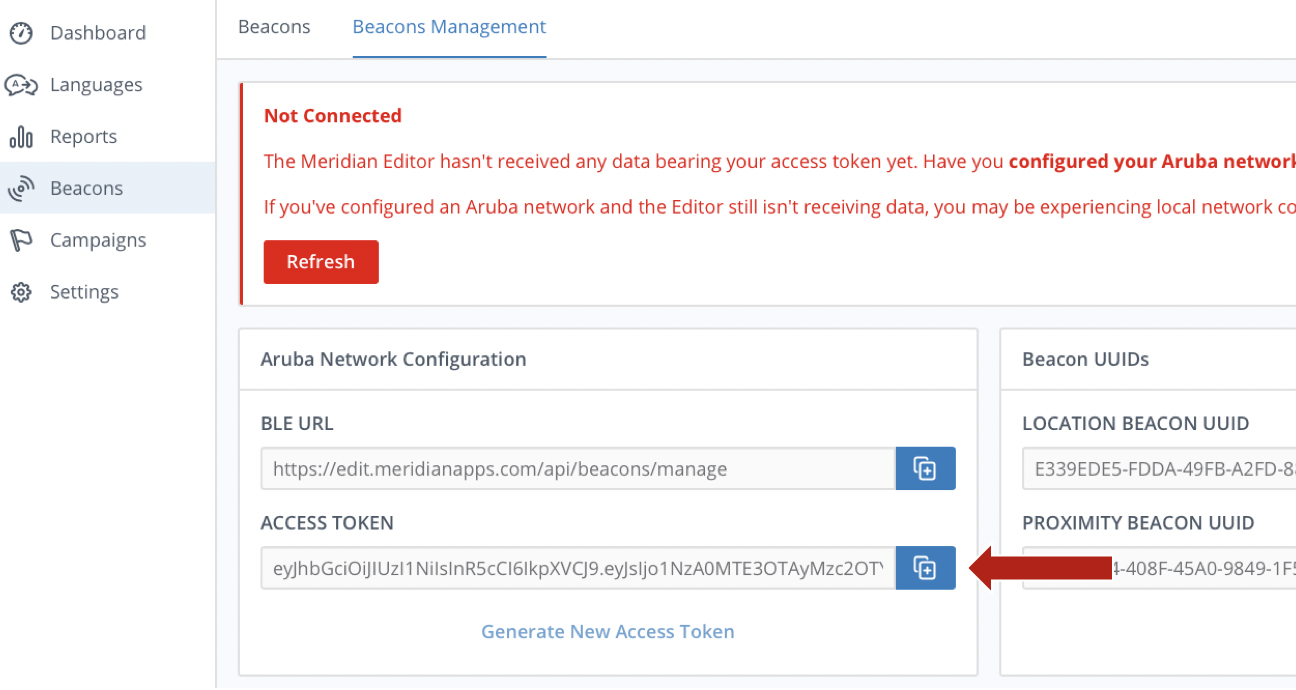

• Authorization token:  <Access Token>

Note: Meridian manages the Transport Interval property as needed, the value entered will only be used for the very first connection. Meridian's default is 3600.

Configuring Beacons Management IoT Profile using the CLI

(host) (config) # iot transportProfile beacons-management
(host) (IoT Data Profile "Beacons Management") # endpointType Meridian-Beacon-Management
(host) (IoT Data Profile "Beacons Management") # endpointURL https://edit.meridianapps.com/api/beacons/manage
(host) (IoT Data Profile "Beacons Management") # endpointToken <access token>
(host) (IoT Data Profile "Beacons Management") # transportInterval 600
(host) (IoT Data Profile "Beacons Management") # vlan 1
(host) (IoT Data Profile "Beacons Management") # exit
(host) (config) # iot useTransportProfile beacons-management
(host) (config) # exit
(host)# commit apply
committing configuration...
configuration committed.

Add Required Certificates for Beacon Management

The following certificates are required to be added:

1. Root CA: GTS Root R1
2. Subordinate CA:  GTS CA 1D4

These certificates are available from https://pki.goog/repository/.  Find the proper certificates, download the Certificate (PEM) format and add it.

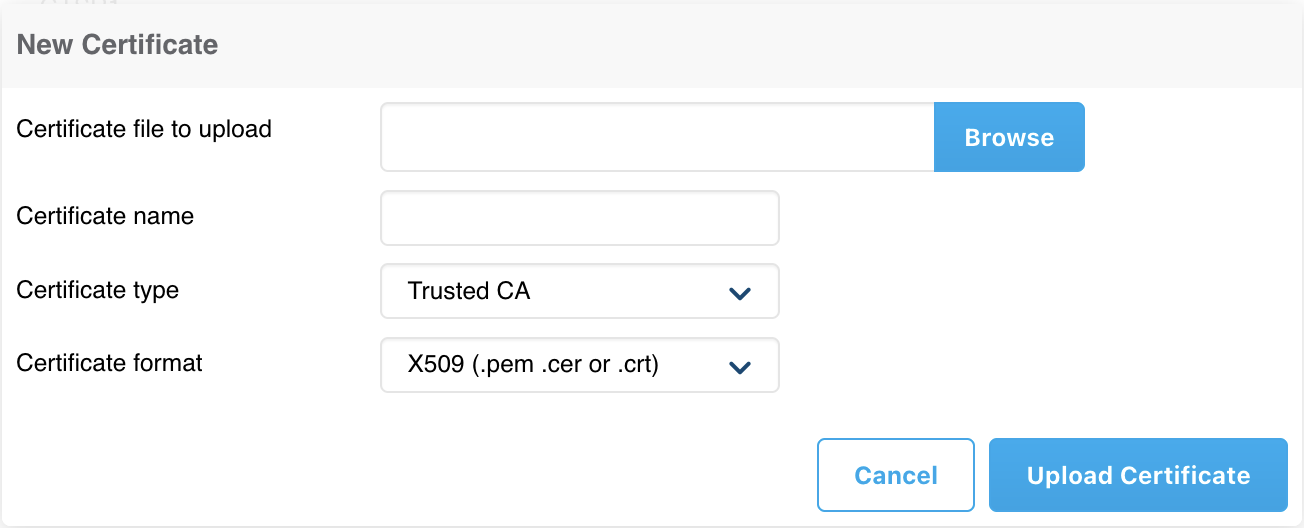

To upload the certificates, on the Virtual Controller, navigate to Maintenance > Certificates.  Click on upload new certificate. Select the required certificate file to upload, give it a name and select certificate type as Trusted CA. Certificate format will be .pem

Verify the connection to Meridian has been established in Editor

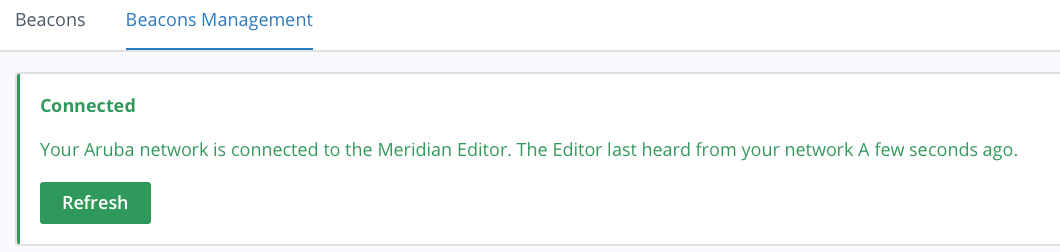

After the changes are set and deployed, the connection to Meridian beacon server should be established.  In Meridian Editor, navigate to the Beacons Management page to make sure the status for Beacon Management is Connected: Your HPE Networking network is connected to the Meridian Editor. The Editor last heard from your network a few seconds ago.

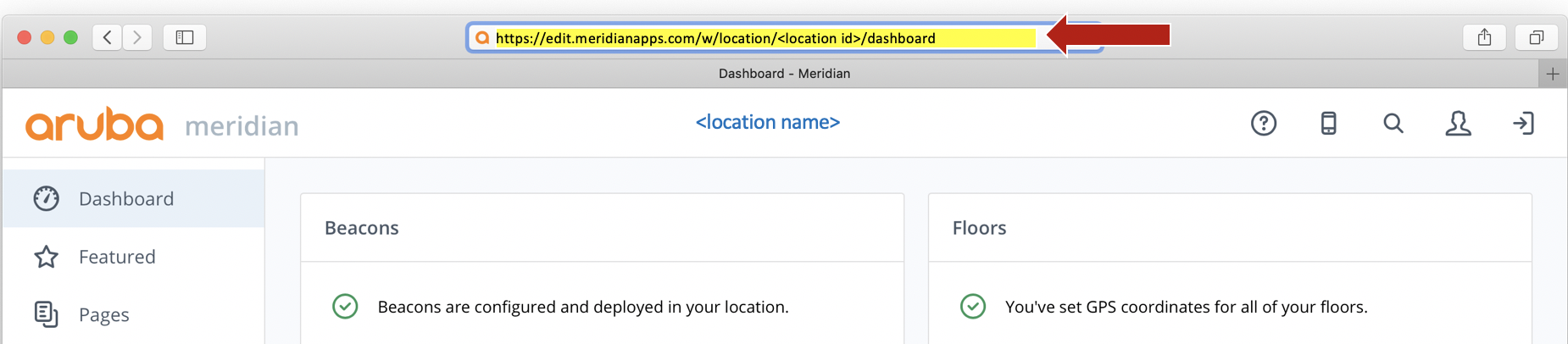

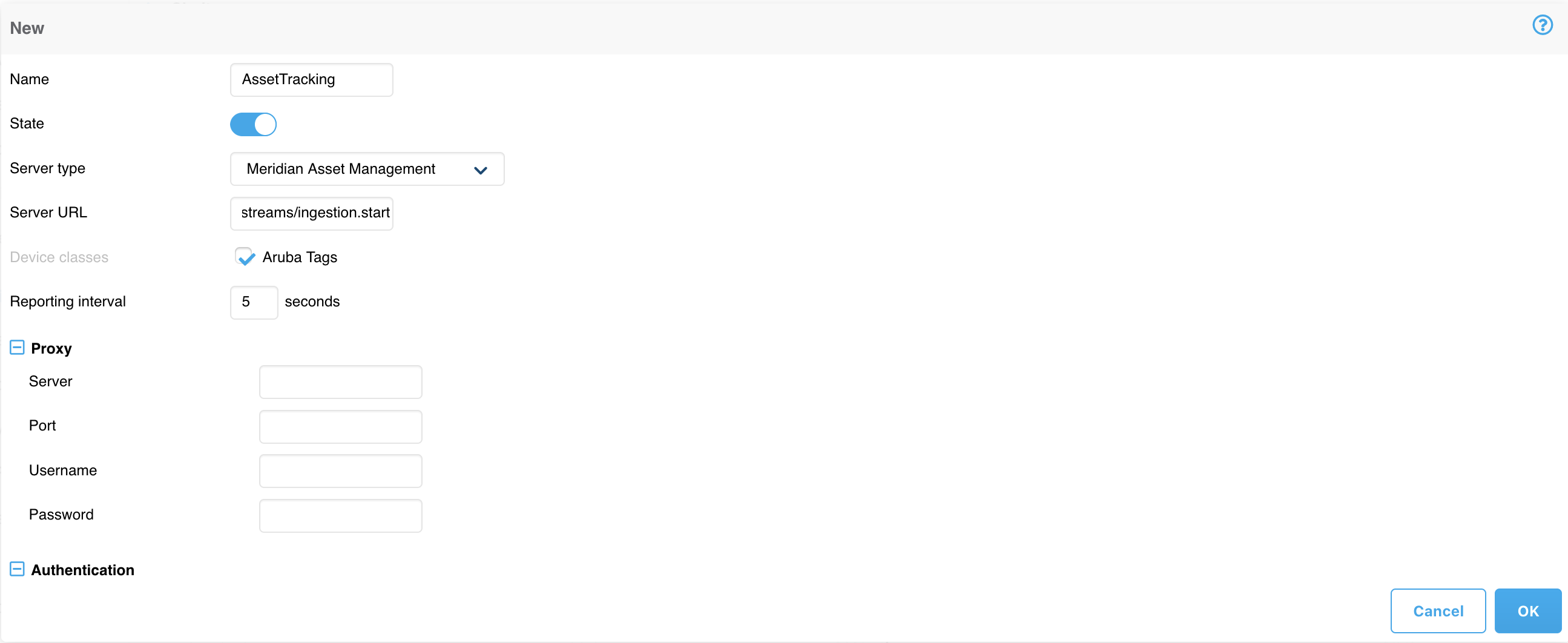

Configuring Asset Tracking IoT Profile

2. Add the DigiCert Root Certificate to the Virtual Controller. A rootCA certificate is required on the controller when connecting the the tags server.

To add the certificate to the Virtual Controller,

1. Navigate to Maintenance > Certificates and click on Upload New Certificate.
2. Download and add the DigiCert Root Certificate.  The root CA certificate for Meridian is can be downloaded from here.
   • Browse for the certificate file and upload it
   • Certificate type:CA
   • Certificate format:X509 (.pem .cer or .crt)
   • Click Upload Certificate

At least one asset tag must be added and within in range of a configured AP before the AP will initiate the connection to the Meridian asset tag server.

Summary

This guide provides the fundamental components necessary to configure the infrastructure to communicate with Meridian Servers for Beacons Management and Asset Tracking. If the system does not work as expected after completing all the steps described above, please contact asp.arubanetworks.com.
