Meridian Deployment Prerequisites

There are many different ways to configure an Aruba network for use with Meridian. Use this document to identify your Aruba network configuration's prerequisites and follow the links to more detailed configuration steps.

This article presumes that you are using Aruba Beacons hardware in your deployment.

Prerequisites for All Configurations

The following are the prerequisites for a Meridian Beacon deployment.

  • A Meridian Editor account.
  • Aruba Beacons (Battery, USB, or Access Point Beacons).
  • The Aruba Beacons app. iOS Only

Setting Up a Web Proxy for Meridian Data

InstantOS

As of InstantOS 6.5.3.1 and 6.5.4.6 you will be able to configure a web proxy for Meridian data with a destination of edit.meridianapps.com:443 and tags.meridianapps.com:443;

In the Instant UI
To configure the HTTP proxy settings:

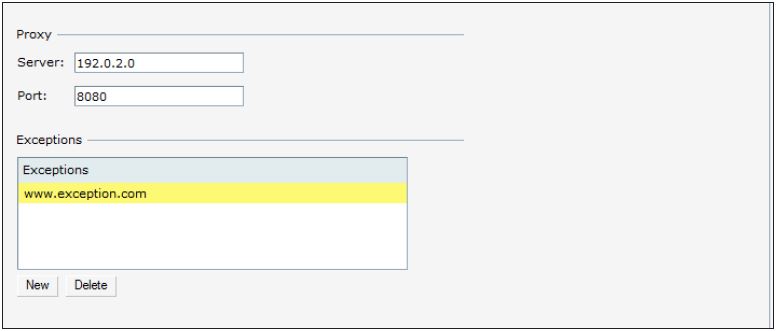

1. Navigate to System > Proxy. The Proxy configuration window is displayed.
2. Enter the HTTP proxy server IP address in the Server text box.
3. Enter the port number in the Port text box.
In the CLI (InstantOS)
To configure the HTTP proxy settings:
   (Instant AP)(config)# proxy server 192.0.2.1 8080<br>   (Instant AP)(config)# proxy exception 192.0.2.2
   (Instant AP)(config)# end
   (Instant AP)#commit apply


AOS (Controller-based)

This feature is not available to proxy controller-based Meridian traffic. Availability to proxy controller-generated Meridian traffic is slated for AOS 8.4 release

Remote Beacons Management Prerequisites

The following are the prerequisites for enabling the Meridian Editor's Remote Beacons Management feature.

Product Versions
7xxx Aruba Controllers
USB Beacons plugged into AP 215/225 AOS 6.4.3.3+
300 series APs with built in BLE Beacon AOS 6.4.4.0+
Aruba Instant Access Point (IAP) 4.2.3.x+

AP 205H is supported on controller-based deployments.

Go here for information on how to enable Beacons Management in the Meridian Editor.

Asset Tracking Prerequisites

The following are the prerequisites for using Aruba Tags for asset tracking.

Go here for information on how to deploy Aruba Tags with the Aruba Tags app.

Go here for information on how to manage Aruba Tags in the Meridian Editor.

Detailed Prerequisite Information

Product Versions
Aruba Controller 7005, 7008, 7010, 7210 AOS 6.5.2, 6.5.3, 6.5.4, 8.2

Indoor APs for ceiling/wall mounts

  • 300 series 11ac Wave 2 with BLE
  • 207 series 11ac Wave 1 with BLE
  • 210/220 series 11ac Wave 1 with USB BLE
AOS 6.5.2, 6.5.3, 6.5.4, 8.2

Indoor APs for desktop/wall-box mounts

  • 303H series 11ac Wave 2 with BLE
  • 203R series 11ac Wave 1 with BLE
  • 203H series 11ac Wave 1 with USB BLE
AOS 6.5.2, 6.5.3, 6.5.4, 8.2

Outdoor APs for pole/wall mounts

  • 365 series 11ac Wave 2 with BLE
  • 367 series 11ac Wave 2 with BLE
AOS 6.5.2, 6.5.3, 6.5.4, 8.2
LS-BT series Beacons BluOS 1.2-15 or later
AT-BT10 Asset Tag BluOS 1.2-14 or later
Beacons app 3.6.0 and later
Tags app 1.0
Meridian Editor Latest version

Instant Access Points (IAP) and Asset Tracking Prerequisites

Instant Access Points (IAP) can be used for Meridian Beacons Management and asset tracking.

  • Instant Access Point (IAP)
    • Recommended models: 203R and 303H
  • AOS 6.5.4.x
  • Upstream network providing DNS, NT, and DHCP
  • Ethernet cables for configuration of IAPs
